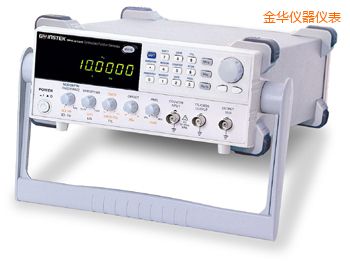

Based on Direct Digital Synthesized (DDS) technology and unique FPGA design, SFG-2000/2100 Series
Fuon, and fine
frequency resolution are the most remarkable characteristics of this product series.nction Generators are built with exceptionally high performance far exceeding that of any conventional
function generators, at a very competitive price. Stable output frequency, low distorti

MAIN

Frequency Range
(For Sine, Square)

1Hz~20MHz

Frequency Range
(For Triangle)

1Hz~1MHz

Frequency Resolution

1Hz

Frequency Stability

∮ 20 ppm

Frequency Accuracy

∮20 ppm

Frequency Aging

5 ppm / year

Output Function

Sine, Square, Triangle

Amplitude Range

2mV~10Vpp(into 50load)

Impedance

50∮10?

Attenuator

-20dB∮1dB⊙2

DC Offset

≌-5V°≈+5V(into 50?load)

Duty Control Range

20% to 80%, 2Hz~1MHz (Square wave only)

Range Resolution

1%

Display

9 digits LED display

SINE WAVE

Harmonics Distortion

-55dBc,0.1Hz°200kHz; -40dBc,0.2MHz°4MHz; -30dBc,4MHz°10MHz
(Specification applied to both TTL/CMOS OFF and from MAX. to 1/10 level)

Flatness (Relative to 1kHz)

≌∮ 0.3dB,0.1Hz°1MHz; ≌∮ 0.5dB,1MHz°4MHz; ≌∮ 2dB, 4MHz°10MHz

TRIANGLE WAVE

Linearity

≠98?,0.1Hz°100kHz;≠95?,100kHz°1MHz

SQUARE WAVE

Symmetry

∮ 1% of period +4ns to 0.1Hz°100kHz

Rise or Fall Time

∝25ns at maximum output.(into 50?load)

CMOS OUTPUT

Level

4Vpp∮1Vpp°15Vpp∮1Vpp adjustable; Rise or Fall Time ∝120ns

TTL OUTPUT

Level

≠3Vpp ; Fan Out; 20 TTL load ; Rise or Fall Time ∝25ns

STORE/RECALL FUNCTION

10 groups of Setting memories

POWER SOURCE

AC115V∮10%, AC 230V+10%/-15%, 50/60Hz

ACCESSORIES

Instruction manual⊙1
Power Cord x 1
GTL-101⊙ 1

DIMENSION & WEIGHT

266(W)⊙107(H)⊙293(D) mm
Approx. 3.1kg
